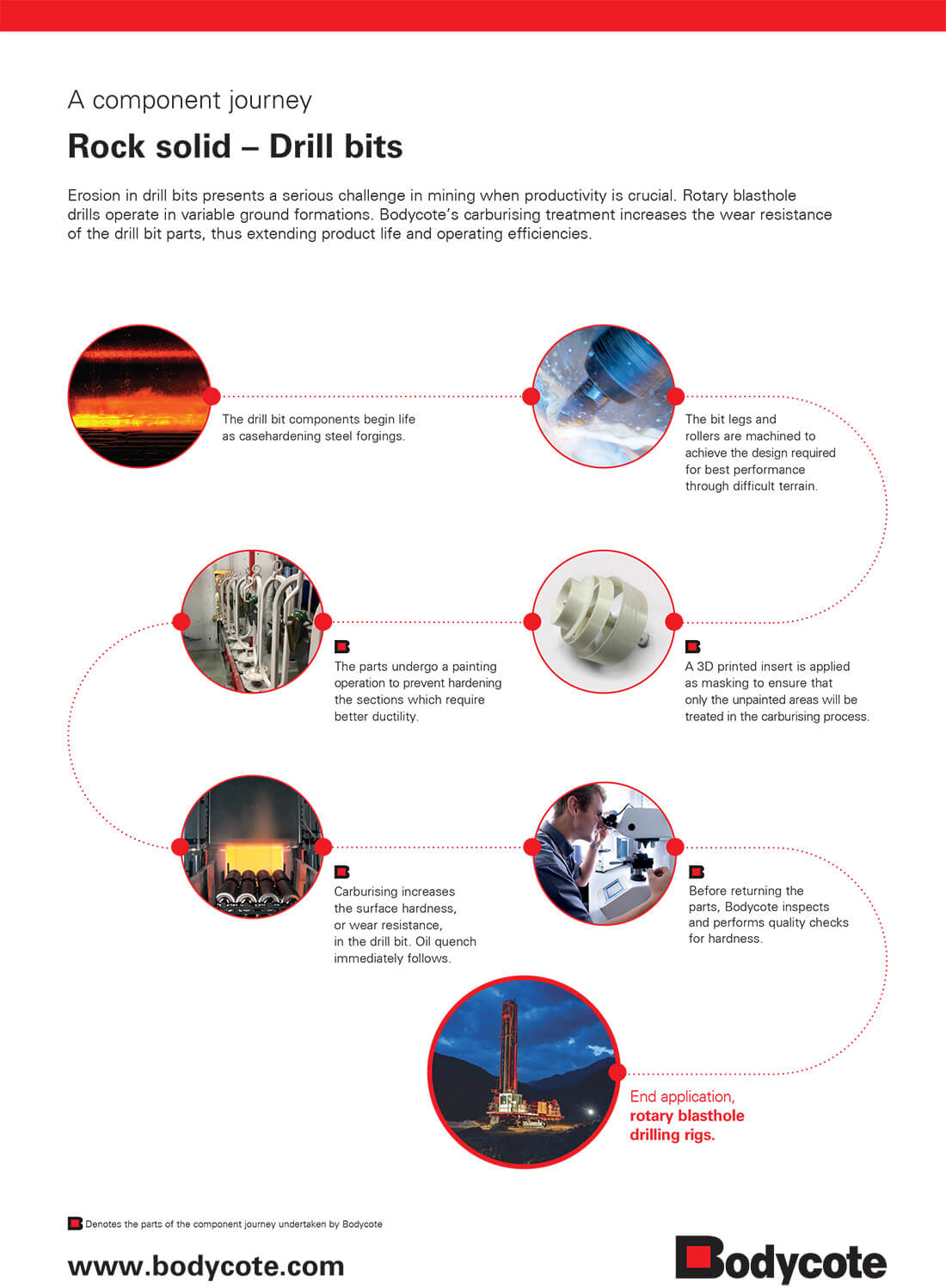

DRILL BITS

Erosion in drill bits presents a serious challenge in mining when productivity is crucial. Rotary blasthole drills operate in variable ground formations. Bodycote’s carburising treatment increases the wear resistance of the drill bit parts, thus extending product life and operating efficiencies.

The drill bit components begin life as casehardening steel forgings.

The drill bit components begin life as casehardening steel forgings.

The bit legs and rollers are machined to achieve the design required for best performance through difficult terrain.

The bit legs and rollers are machined to achieve the design required for best performance through difficult terrain.

The bit legs and rollers are machined to achieve the design required for best performance through difficult terrain.

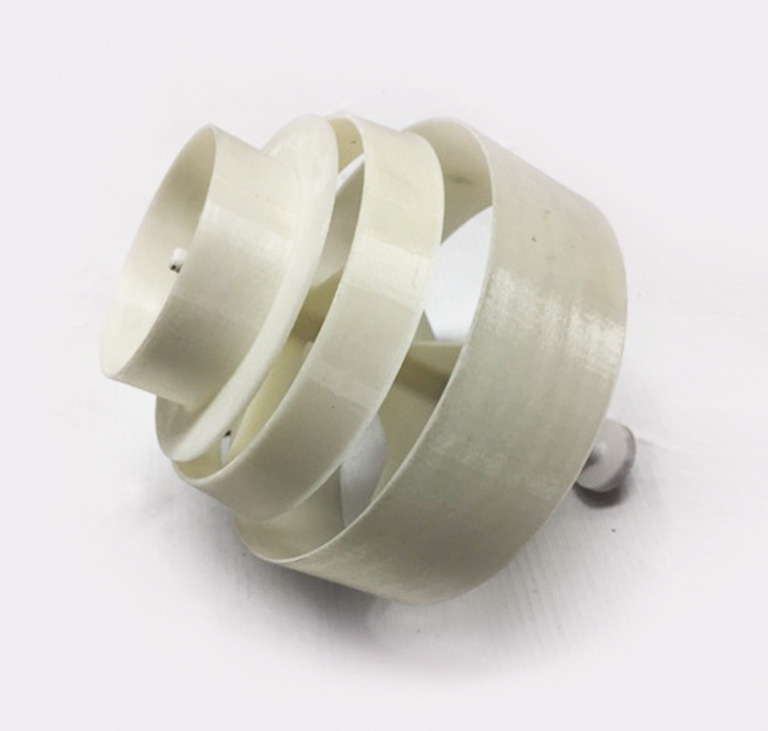

A 3D printed insert is applied as masking to ensure that only the unpainted areas will be treated in the carburising process.

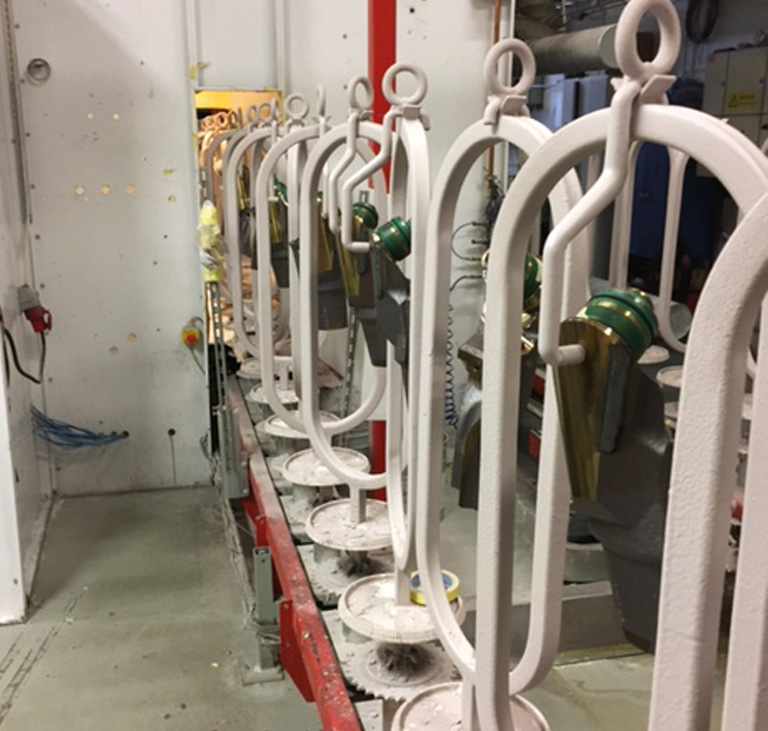

The parts undergo painting operation to prevent hardening the sections which require better ductility.

The parts undergo painting operation to prevent hardening the sections which require better ductility.

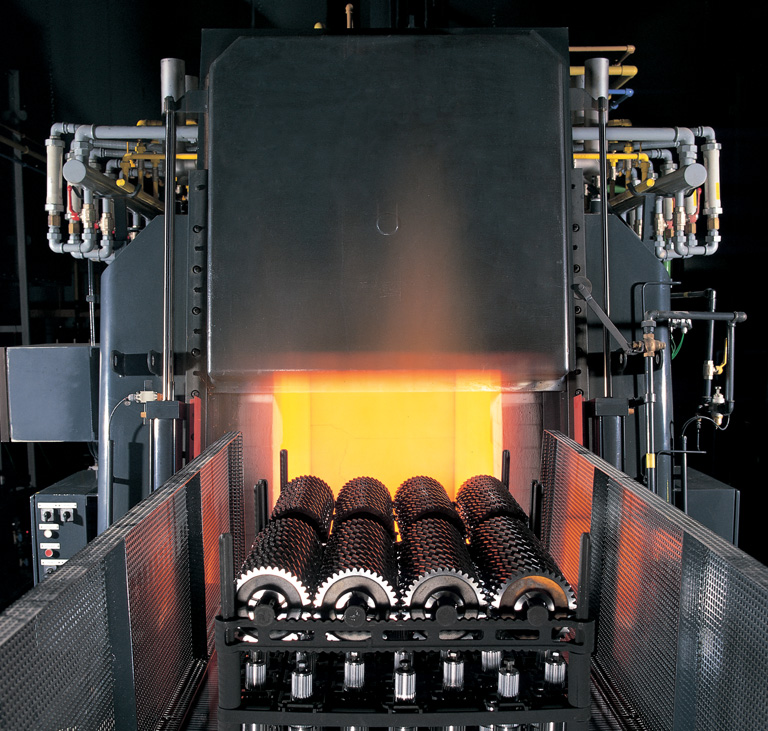

Carburising increases the surface hardness, or wear resistance, in the drill bit.  Oil quench immediately follows.

Carburising increases the surface hardness, or wear resistance, in the drill bit. Oil quench immediately follows.

Carburising increases the surface hardness, or wear resistance, in the drill bit.  Oil quench immediately follows.

Before returning the parts, Bodycote inspects and performs quality checks for hardness.

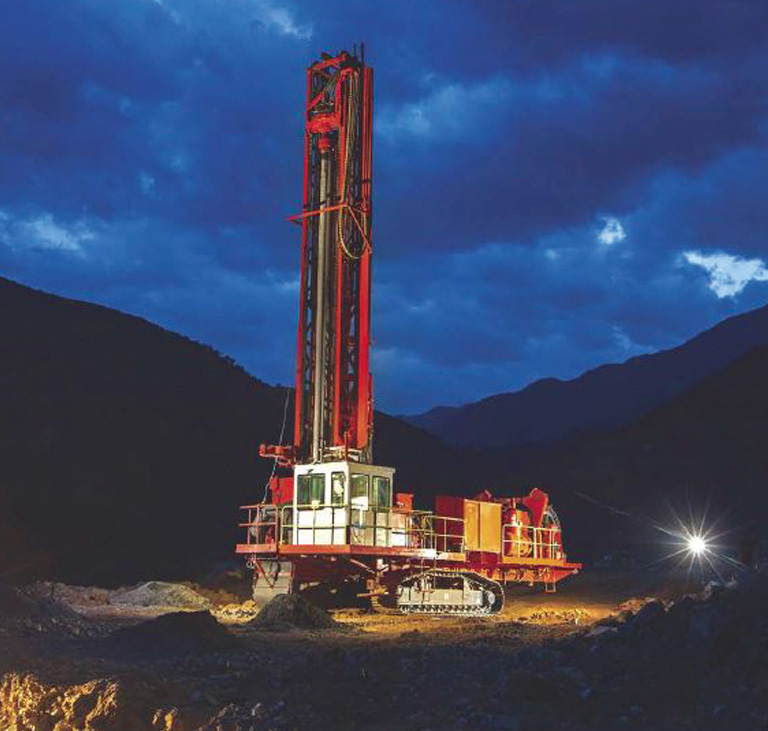

End application - rotary blasthole  drilling rigs.

End application - rotary blasthole drilling rigs.
